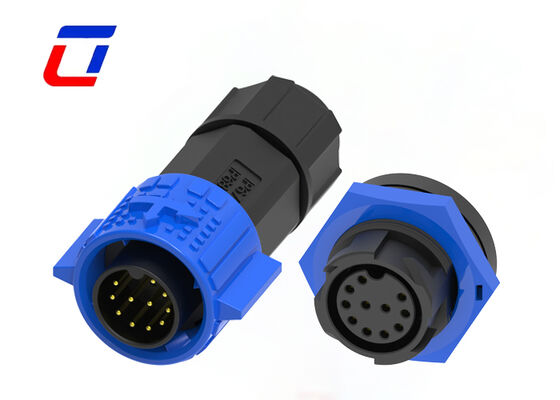

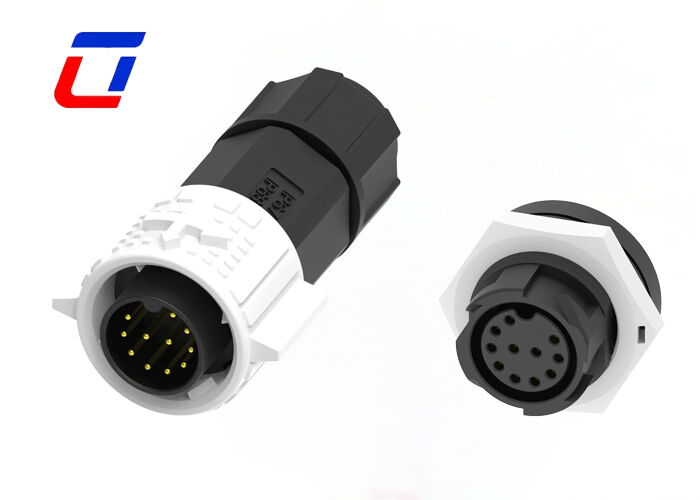

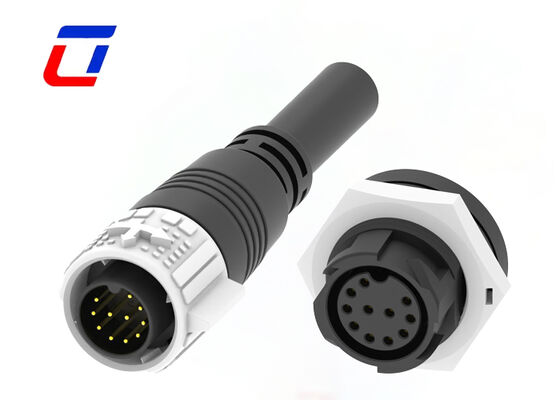

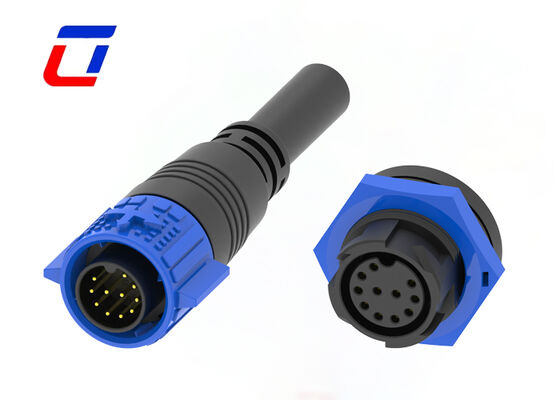

M19 300V 5A Waterproof Plug And Socket Connector 11 Pin Cable To Board Connector IP67

M19 300V 5A Waterproof Plug And Socket Connector 11 Pin Cable To Board Connector IP67

  • M19 300V 5A Waterproof Plug And Socket Connector 11 Pin Cable To Board Connector IP67
  • M19 300V 5A Waterproof Plug And Socket Connector 11 Pin Cable To Board Connector IP67
  • M19 300V 5A Waterproof Plug And Socket Connector 11 Pin Cable To Board Connector IP67
  • M19 300V 5A Waterproof Plug And Socket Connector 11 Pin Cable To Board Connector IP67
M19 300V 5A Waterproof Plug And Socket Connector 11 Pin Cable To Board Connector IP67
Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: Ulinkcon
Сертификация: CE/Rohs/TUV/UL
Номер модели: М19
Оплата и доставка Условия:
Количество мин заказа: Переговоры
Цена: Подлежит обсуждению
Упаковывая детали: 1.Пластиковый пакет;2.Картонная коробка;3.В соответствии с требованиями заказчика.
Время доставки: 3~6рабочих дней
Условия оплаты: T/T, D/P, L/C, D/A, Western Union, Moneygram
Поставка способности: 100000 пар ежемесячно
контакт
Подробное описание продукта
Пол: Вилка и розетка от мужчины к женщине Текущий рейтинг:
Приколоть: 11-контактный Уровень защиты: IP67
Материал: Нейлон и латунь с позолотой Рейтинг огнестойкости: УЛ94-В0
Выделить:

M19 waterproof plug connector IP67

,

11 pin board connector 300V

,

5A waterproof socket connector

M19 11Pin IP67 Panel Mount Connector Push Pull Industrial Plug Socket For Data
Main Features
Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Key Features

  • 11-Pin High-Density Independent Channels: Equipped with 11 groups of individually insulated pin channels with scientific spacing and enhanced isolation, the connector supports synchronous transmission of multiple sensor data, control commands and low-voltage auxiliary signals. It effectively simplifies complex multi-connector splicing wiring, reduces internal circuit failure points, improves equipment signal integration and ensures stable linkage operation of intelligent devices.
  • 5A Precise Low-Current Stable Transmission: Optimized exclusively for industrial low-voltage weak current working conditions, it provides long-term steady 5A rated current output with balanced load and zero overheating risk. It effectively avoids signal distortion, data drift and command delay, fully meeting the high-precision transmission requirements of precision testing instruments and intelligent control equipment.
  • 300V Reinforced Insulation & Electrical Safety: Adopting thickened industrial insulation material and integrated insulation cavity, the connector withstands up to 300V rated voltage. It resists industrial voltage fluctuation, instantaneous surge and pulse impact, preventing electric leakage, short circuit and circuit crosstalk. The aging-resistant and breakdown-proof insulation structure ensures long-term safe operation of weak current control systems.
  • Professional Cable-To-Board Mounting Structure: Designed for wire and PCB board docking, one end supports cable crimping while the other fits direct plug-in and soldering installation for various industrial control and sensor circuit boards. With high alignment fault tolerance, it adapts to automated mass production, reduces manual assembly errors and greatly improves production efficiency.
  • IP67 Full Waterproof & Dustproof Protection: Fitted with high-elastic anti-aging silicone sealing rings, the mated plug and socket form a completely closed tight cavity. It blocks rainwater immersion, condensation, dust accumulation and light oil erosion, protecting board-end circuits from moisture oxidation and dust short-circuit in humid, dusty and open-air harsh working environments.
  • Industrial Weather Resistance & Long Service Life: Made of high-toughness modified engineering plastic with weather-resistant treatment, it maintains stable structural and electrical performance in the range of -40℃ to +105℃. Featuring UV resistance, impact resistance and corrosion resistance, it avoids low-temperature embrittlement and high-temperature deformation, supporting long-term uninterrupted operation of equipment.
Electrical Parameters
Number of Poles11Pin
Current Rating5A max
Voltage Rating300VAC max
Durability Voltage1500VAC @ 60 s
Technical Parameters
Contact Resistance10 mΩ max
Insulation Structure500 MΩ at 500VDC
Operating Temperature-40°C ~ +105°C
IP ClassIP67 (1m / 30min) when mated
Mold MaterialPA66
Contact/Terminal MaterialGold Plated Brass
Seal MaterialSilicone
Application Industries
Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery
Operation Parameters
Voltage Rating300VAC max
Current Rating5A max
Min Wire Size OD3.0mm ~ 6.0mm
Max Wire Size OD8.0mm ~ 10.0mm
Max Cable Cross Section Area0.5mm² ~ 2.5mm²
Design Sketch
M19 11Pin IP67 Panel Mount Connector design diagram M19 11Pin IP67 Panel Mount Connector technical specifications
Frequently Asked Questions

Can I have custom label?

Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.

How to buy your products?
You need to do as followings:
Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire gauge
Confirm Cable Length and Material
