Name: 300V M19 10 Pin Waterproof Panel Connector Plastic PA66 Push Pull Data Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: М19
Availability: InStock

Главная страница Продукция На открытом воздухе водоустойчивый соединитель

300V M19 10 Pin Waterproof Panel Connector Plastic PA66 Push Pull Data Connectors

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	Ulinkcon
Сертификация:	CE/Rohs/TUV/UL
Номер модели:	М19

Оплата и доставка Условия:

Количество мин заказа:	Переговоры
Цена:	Подлежит обсуждению
Упаковывая детали:	1.Пластиковый пакет;2.Картонная коробка;3.В соответствии с требованиями заказчика.
Время доставки:	3~6рабочих дней
Условия оплаты:	Т/Т, Д/П, Л/К, Д/А, Вестерн Юнион, МонейГрам
Поставка способности:	100000 пар ежемесячно

контакт

Подробное описание продукта

Приколоть:	10-контактный	Материал:	Нейлон
Текущий рейтинг:	5А	Номинальное напряжение:	300В
Пол:	Мужчина женщине	Тип:	Штепсельная вилка/гнездо

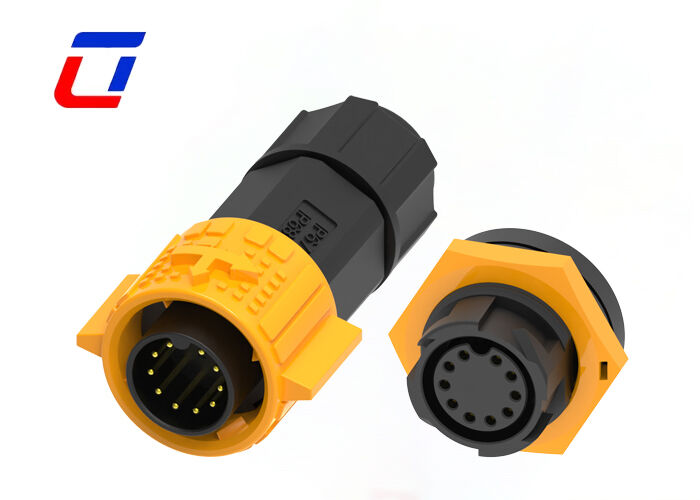

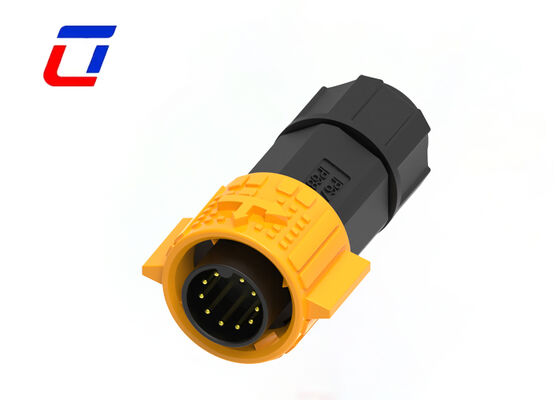

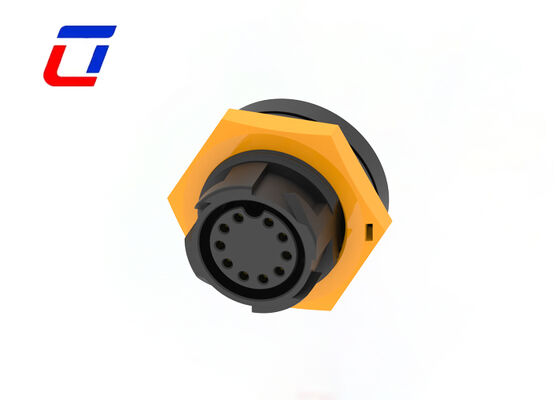

300V M19 10 Pin Waterproof Panel Connector Plastic PA66 Push Pull Data Connectors

Product Overview

M19 10 Pin Waterproof Quick Disconnect Wire To Board Connectors

Quick Description

Core Specifications & Panel-Mounted Design: M19 series 10-pin waterproof panel connector, rated voltage 300V, made of high-quality PA66 plastic material, adopts push-pull connection mode, specialized for data transmission scenarios.
IP67 Waterproof & Dustproof Protection: Integrated high-sealing structure with wear-resistant silicone sealing ring, fully compliant with IP67 protection grade.
PA66 Material Advantages: The shell is made of industrial-grade PA66 plastic, which has excellent properties such as high strength, impact resistance, anti-aging, anti-UV and corrosion resistance.
Push-Pull Connection & Operation Convenience: Adopts precision push-pull connection structure, which is smooth to operate—push to connect and pull to disconnect, fast and firm.
10-Pin Data Transmission Performance: 10-pin independent design, reasonable pin layout, low contact resistance (≤10mΩ), excellent signal anti-interference performance.
Applicable Scenarios: Widely used in industrial control equipment, instrumentation, communication equipment, outdoor electronic devices, medical equipment, and smart equipment.

Electrical Parameters

Number of Poles	10Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How can I get samples?

A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

Q: How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
