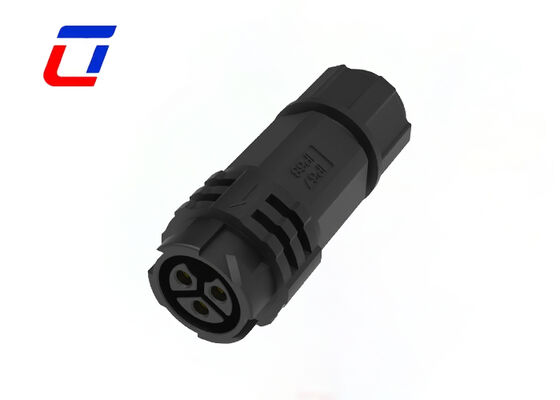

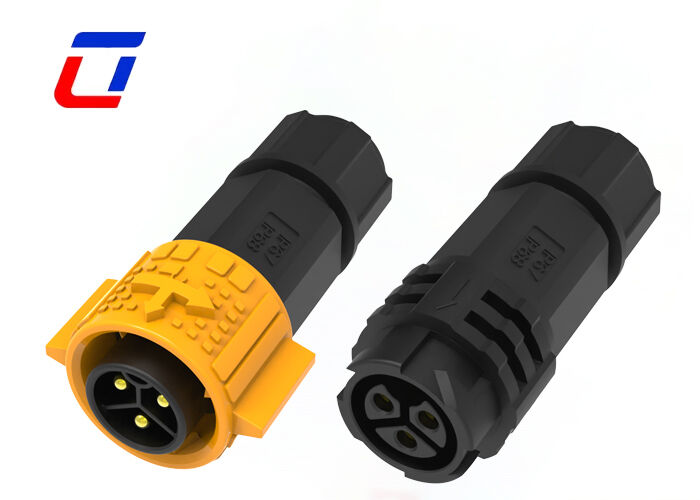

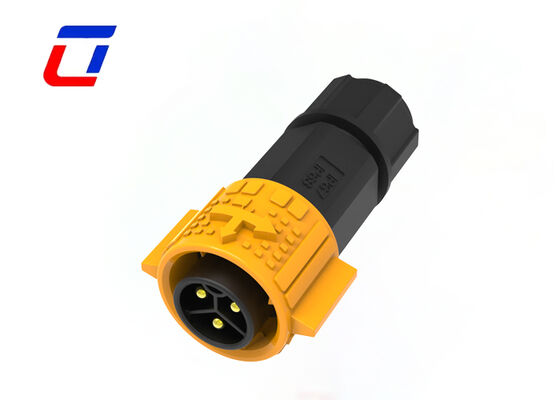

Name: 3 Pin M19 Waterproof Power Connectors Quick Male Female Connector 20A For Industry
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: М19
Availability: InStock

Главная страница Продукция На открытом воздухе водоустойчивый соединитель

3 Pin M19 Waterproof Power Connectors Quick Male Female Connector 20A For Industry

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	Ulinkcon
Сертификация:	CE/Rohs/TUV/UL
Номер модели:	М19

Оплата и доставка Условия:

Количество мин заказа:	Переговоры
Цена:	Подлежит обсуждению
Упаковывая детали:	1.Пластиковый пакет;2.Картонная коробка;3.В соответствии с требованиями заказчика.
Время доставки:	3~6рабочих дней
Условия оплаты:	Т/Т, Д/П, Л/К, Д/А, Вестерн Юнион, МонейГрам
Поставка способности:	100000 пар ежемесячно

контакт

Подробное описание продукта

Текущий рейтинг:	20А	Материал:	PA66 и латунь, луженая
Номинальное напряжение:	300В	Рейтинг огнестойкости:	УЛ94-В0
Тип:	С провода на провода	Температура:	-40~105°C
Цвет:	Черный, Белый, Желтый, Красный
Выделить:	3 pin waterproof power connector , M19 industrial waterproof connector , 20A quick connect male female

20A 3 Pin Power Connector M19 DC Waterproof Quick Connector

Product Overview

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Power

Main Features

Item Name: M19 Waterproof Cable Connector
Specifications: Straight male-female mating, elbow male-female mating, front-mounted wire-to-board, rear-mounted wire-to-board, integrated injection molding
Coupling way: Self-locking
Pins number: 2-22 pins
Plug: Assembly type and Injection type available
Socket: Front Mount, Back Mount, PCB Mount
Waterproof grade: IP67/IP68
Connector type: Assembly lock screw; Assembly welding; Injection molding with cable
Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
Wiring range Assembled: 6.0mm~16mm; Molding 6.0mm~16.5mm
Durability: 3000 times
Applicable temperature: -40℃~105℃

Quick Description

3-Pin M19 Standard
Standard M19 thread size, 3-pin configuration for stable power transmission.

Waterproof & Industrial Grade
IP67/IP68 high waterproof performance, suitable for harsh industrial environments.

Quick Connect Male & Female
Plug‑and‑play quick locking design, easy and fast installation.

20A High Current Rating
Supports up to 20A current, ideal for industrial power applications.

Reliable Industrial Connector
Stable connection, anti-vibration, corrosion-resistant, long service life.

Wide Industrial Compatibility
Used in machinery, outdoor equipment, lighting, electrical cabinets and more.

Technical Specifications

Electrical Parameters

Number of Poles	3 pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

What shipping methods do you offer? How long is the delivery time?

We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.

How many materials you can provide?

There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

Can I have custom label?

Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
