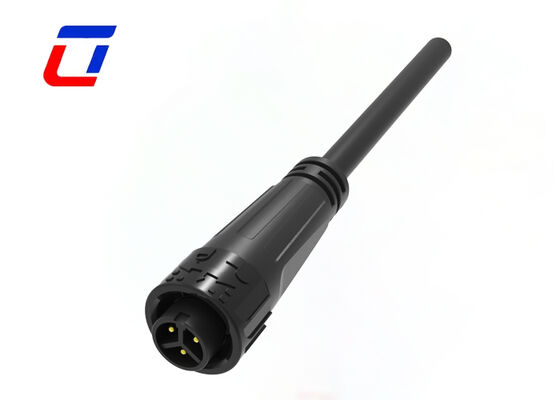

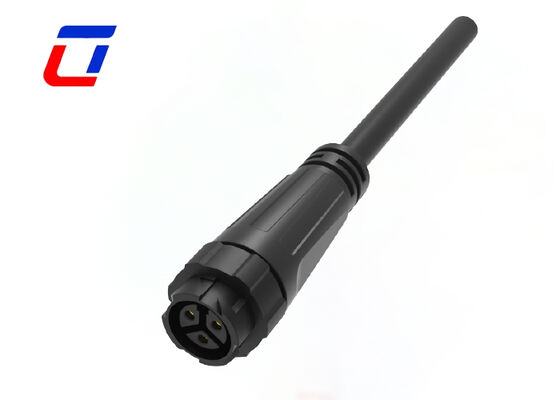

Name: M16 Wire To Wire Power Connector Rohs Waterproof 300V Connector 3 Pin For Power
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: М16
Availability: InStock

Главная страница Продукция водоустойчивый кабельный соединитель

M16 Wire To Wire Power Connector Rohs Waterproof 300V Connector 3 Pin For Power

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	Ulinkcon
Сертификация:	CE/Rohs
Номер модели:	М16

Оплата и доставка Условия:

Количество мин заказа:	Переговоры
Цена:	Подлежит обсуждению
Упаковывая детали:	Высококачественная экспортная коробка
Время доставки:	3 ~ 6 рабочих дней
Условия оплаты:	Т/Т, Д/А, Д/П, МонейГрам, Л/К
Поставка способности:	100000 пар в месяц

контакт

Подробное описание продукта

Количество контактов:	3-контактный	Текущий:	10А макс.
Номинальное напряжение:	300В	Рейтинг водонепроницаемости:	IP67
Цвет:	Красный Синий Белый Черный Желтый	Поля индустрии:	Промышленная автоматизация / Новая энергетика / Строительная техника
Рейтинг огнестойкости:	УЛ94-В0
Выделить:	M16 waterproof power connector 3 pin , wire to wire connector 300V , Rohs waterproof cable connector

M16 3 Pin Cable Quick Lock IP67 Waterproof Molded Connector

Product Overview

Wire‑to‑Wire Direct Connection Design
Specially designed for wire‑to‑wire power connection, enabling fast and stable docking between two cables without PCB or panel, greatly improving wiring efficiency.

IP67 Waterproof & Dustproof Protection
With integrated sealed structure, it reaches IP67 protection grade, effectively isolating moisture, rain, dust and oil, suitable for outdoor and harsh industrial environments.

3‑Pin Special Power Terminal Configuration
Optimized 3‑pin layout for stable power transmission, with low contact resistance and high conductivity, ensuring safe and reliable power supply for various equipment.

300V Rated Voltage for Wide Application
Rated voltage up to 300V, ideal for low‑voltage power systems, lighting, electrical equipment and industrial control devices.

RoHS Compliant & Environmentally Friendly
Fully meets RoHS environmental standards, free of hazardous substances, safe for industrial and daily use, and eco-friendly.

Key Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin available
Field assembly version: wire-to-wire and wire-to-board options
High current rated waterproof connector up to 10A for continuous operation
Cable assembly service supported with customization options
OEM/ODM services available

Electrical Specifications

Number of Poles	3Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Specifications

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications equipment
Product coding machines
Inventory product coding systems
Inkjet systems
Solar systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimensions

Technical Details

Frequently Asked Questions

Q1: How many materials can you provide?

There are different materials available for connectors and cables. We typically use PVC/Nylon material for connectors and PVC/Rubber/Silicone material for cables. We can also select materials according to your specific requirements.

Q2: How do I place an order? What is the process?

The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

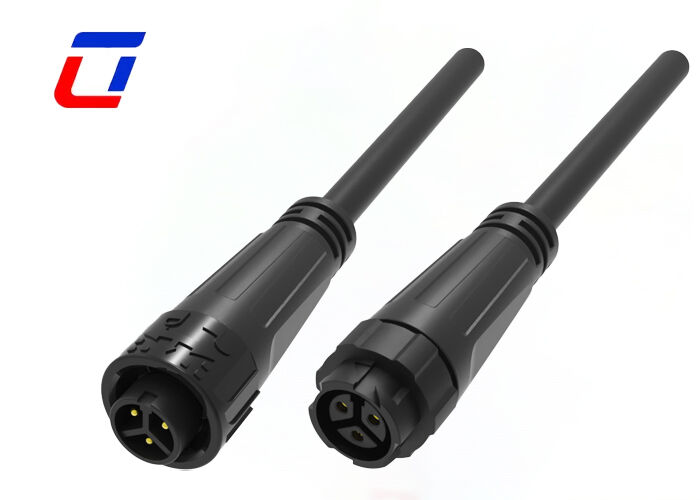

M16 Wire To Wire Power Connector Rohs Waterproof 300V Connector 3 Pin For Power 2
