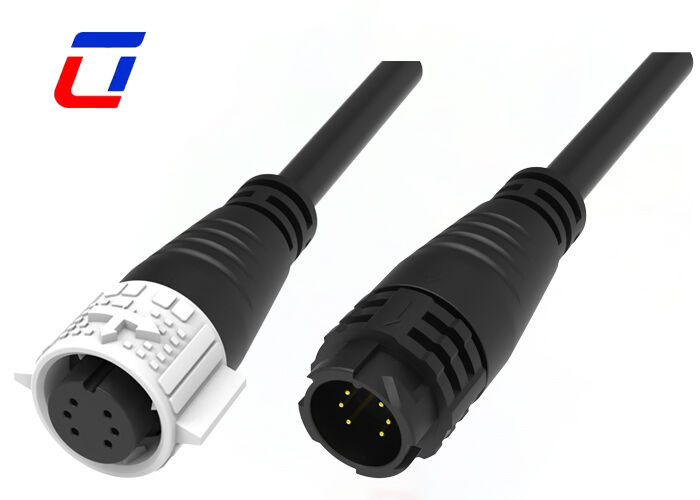

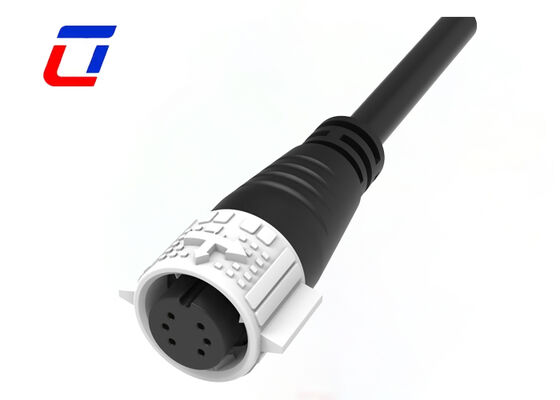

Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data

Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data

  • Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data
  • Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data
  • Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data
Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data
Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: Ulinkcon
Сертификация: CE/Rohs
Номер модели: М19
Оплата и доставка Условия:
Количество мин заказа: Переговоры
Цена: Подлежит обсуждению
Упаковывая детали: Высококачественная экспортная коробка
Время доставки: 3 ~ 6 рабочих дней
Условия оплаты: Т/Т, Д/А, Д/П, МонейГрам, Л/К
Поставка способности: 100000 пар в месяц
контакт
Подробное описание продукта
Количество контактов: 6-контактный Текущий: 10А
Номинальное напряжение: 300В Рейтинг водонепроницаемости: IP67
Цвет: Красный Синий Белый Черный Желтый Температура: -40~+105℃
Выделить:

M19 6 pin waterproof connector

,

outdoor waterproof data connector

,

male female wire connector waterproof

M19 6-Pin Outdoor Waterproof Data Connector
Product Overview
This industrial-grade M19 6-pin waterproof connector is specifically engineered for outdoor data transmission applications. Featuring excellent sealing performance and stable conductivity, it provides reliable data connections for outdoor electronic equipment. The male-female pairing design ensures precise 6-pin core connections for efficient transmission of various low-current data signals.
Key Features
  • IP67 rated waterproof and dustproof protection
  • Push-lock quick release system for easy installation
  • High-conductivity brass terminals with gold plating
  • Wide operating temperature range: -40°C to +105°C
  • Weather-resistant PA66 housing material
  • Multiple pin configurations available (2-20 pins)
  • Wire-to-wire and wire-to-board assembly options
  • 10A maximum current rating for continuous operation
  • Custom cable assembly and OEM/ODM services available
Electrical Specifications
Number of Poles 6-pin configuration
Current Rating 10A maximum
Voltage Rating 300V AC maximum
Durability Voltage 1000V AC @ 60 seconds
Technical Specifications
Contact Resistance 10 mΩ maximum
Insulation Resistance 500 MΩ at 500V DC
Operating Temperature -40°C to +105°C
IP Rating IP67 (1 meter / 30 minutes)
Housing Material PA66
Contact Material Gold-plated brass
Seal Material Silicone
Application Industries
  • Communications equipment
  • Industrial inkjet systems and coding machines
  • Solar power systems
  • Electric power equipment
  • Laboratory and forensic equipment
  • Heavy machinery
  • Security monitoring systems
  • Smart agriculture
  • Industrial automation
  • New energy equipment
Product Dimensions
Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data 0
Technical Details
Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data 1
Frequently Asked Questions
What is rated voltage?
Rated voltage, also known as operating voltage, depends on the connector's insulation material and contact spacing. Some components may not function properly below their rated voltage specification.
Are your products certified? What certifications do you have?
All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market requirements.
What is your Minimum Order Quantity (MOQ)?
The MOQ varies by product type—typically 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation agreements.
Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data 2
