M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin

M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin

  • M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin
  • M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin
  • M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin
M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin
Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: Ulinkcon
Сертификация: CE/Rohs
Номер модели: М19
Оплата и доставка Условия:
Количество мин заказа: Переговоры
Цена: Подлежит обсуждению
Упаковывая детали: 1.Пластиковый пакет;2.Картонная коробка;3.В соответствии с требованиями заказчика.
Время доставки: 3~6рабочих дней
Условия оплаты: Т/Т, Д/П, Л/К, Д/А, Вестерн Юнион, МонейГрам
Поставка способности: 100000 пар ежемесячно
контакт
Подробное описание продукта
Приколоть: 8-контактный Тип разъема: Быстрый разъем
Номинальное напряжение: 300В Рабочая температура: -40℃-+105℃
Рейтинг огнестойкости: УЛ 94-В0 Цвет: Голубой, белый, зеленый
Выделить:

IP67 waterproof cable connector

,

8 pin outdoor cable connector

,

M19 waterproof male female connector

M19 IP67 Waterproof Outdoor Connector  8 Pin Male Female
Professional Outdoor Data Transmission Solution

This M19 8-pin circular connector is specifically engineered for outdoor data transfer applications, featuring 300V voltage compatibility, IP67 protection rating, and a quick-release mechanism. The expanded 8-pin design supports multi-channel synchronous data transmission, while the male-female cable connection includes a one-click quick-release system for easy installation and maintenance.

Constructed with high-strength plastic housing for enhanced durability against outdoor environmental corrosion, this connector delivers reliable performance in demanding conditions.

Key Features
  • Push-lock quick release system for tool-free operation
  • Multiple pin configurations available: 2-18 pins for various applications
  • Field assembly versions: wire-to-wire and wire-to-board options
  • 5A current rating for continuous operation
  • Gold-plated copper pins for optimal contact efficiency
  • IP67 dustproof and waterproof protection
  • Anti-electromagnetic interference structure
  • Temperature range: -40°C to +105°C
  • Cable assembly service and OEM/ODM support available
Application Industries
  • Growth Lights and Agricultural Systems
  • Communications Equipment
  • Product Coding Machines and Inkjet Systems
  • Solar Power Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory and Forensic Equipment
  • Heavy Machinery and Industrial Controls
  • Smart Municipal Equipment
  • Outdoor Testing Instruments
Technical Specifications
Electrical Parameters
Number of Poles 8 Pin
Current Rating 5A max
Voltage Rating 300VAC max
Durability Voltage 1000VAC @ 60 seconds
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C to +105°C
IP Class IP67 (1m / 30min when mated)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Min Wire Size OD 3.0mm - 6.0mm
Max Wire Size OD 8.0mm - 10.0mm
Max Cable Cross Section Area 0.5mm² - 1.5mm²
Product Design

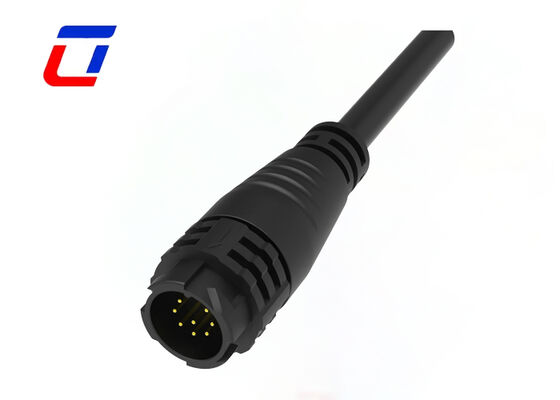

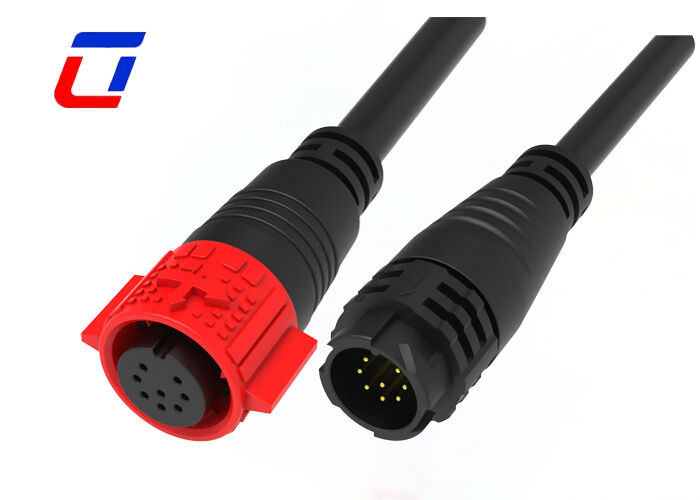

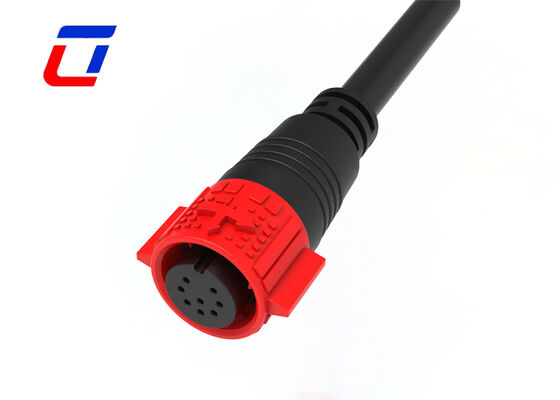

M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin 0 M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin 1
Frequently Asked Questions
Are you a factory or trading company?
We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
Do you accept other payment currencies besides USD?
Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
How can I get samples?
We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier account number and detailed address for immediate sample shipment.
How many materials can you provide?
We offer various materials for connectors and cables. Connectors typically use PVC or Nylon materials, while cables use PVC, Rubber, or Silicone materials. We can also customize materials according to your specific requirements.
