Name: M19 Cable To Cable Connectors Push Locking 7 Pin Data Low Voltage Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: М19
Availability: InStock

Главная страница Продукция Водостойкий соединитель данных

M19 Cable To Cable Connectors Push Locking 7 Pin Data Low Voltage Connector

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	Ulinkcon
Сертификация:	CE/Rohs/TUV/UL
Номер модели:	М19

Оплата и доставка Условия:

Количество мин заказа:	Переговоры
Цена:	Подлежит обсуждению
Упаковывая детали:	1.Пластиковый пакет;2.Картонная коробка;3.В соответствии с требованиями заказчика.
Время доставки:	3~6рабочих дней
Условия оплаты:	Т/Т, Д/П, Л/К, Д/А, Вестерн Юнион, МонейГрам
Поставка способности:	100000 пар ежемесячно

контакт

Подробное описание продукта

Приколоть:	7-контактный	Текущий рейтинг:	5А
Тип разъема:	Быстрый разъем	Номинальное напряжение:	300В
Материал:	Нейлон	Температура:	-40~+105℃
Выделить:	M19 waterproof data connector , 7 pin push lock connector , low voltage cable connector

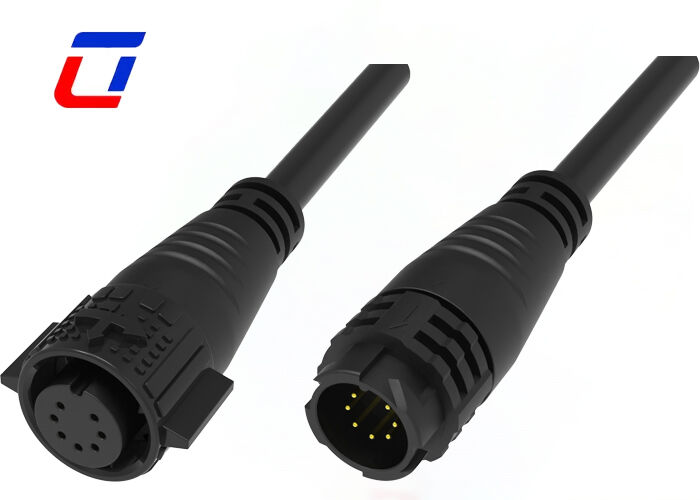

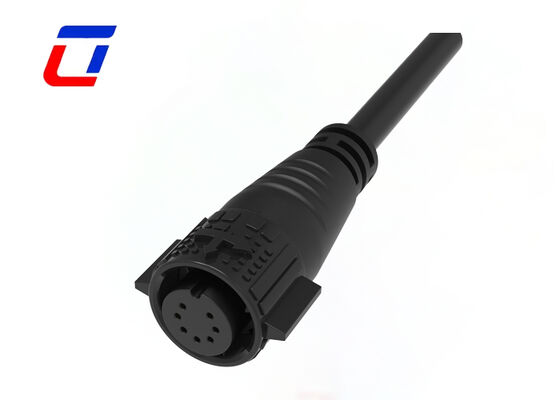

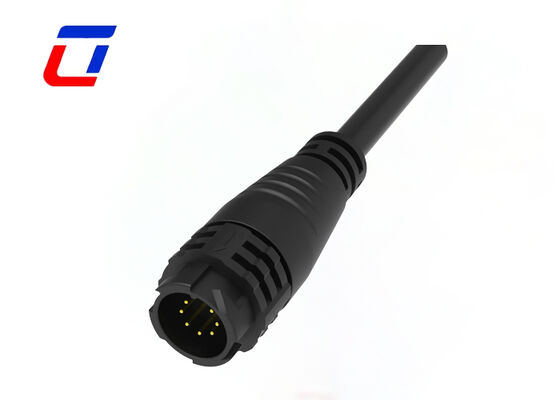

M19 Cable To Cable Connectors Push Locking 7 Pin Data Low Voltage Connector

Our 7 Pin M19 Wire-to-Board Male-Female Connector is engineered for rugged outdoor applications, delivering reliable connectivity that stands up to harsh environmental conditions. Designed with a precision M19 housing, this connector ensures secure wire-to-board integration, while the 7-pin configuration enables stable transmission of power and signals for a wide range of industrial and outdoor devices.

Key Features

Exceptional Waterproof Capability: IP67-grade sealing (with customization available) reliably protects against moisture, dust, and particulates. Ideal for outdoor deployments, marine equipment, and industrial machinery in rainy, humid, or extreme temperature environments.

Efficient 7-Pin Transmission: Seven dedicated pins enable multi-signal transmission for complex devices including outdoor sensors, LED lighting systems, and solar modules.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, custom options available
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Specifications

Electrical Parameters

Number of Poles	7Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How to buy your products?

A: You need to do as followings:

Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire gauge
Confirm Cable Length and Material

Q: What is rated voltage?

A: Rated voltage, also known as operating voltage, depends mainly on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.
