Количество контактов:	3+9 ПИН	Рейтинг водонепроницаемости:	IP67
Температурный диапазон:	-40℃~+105℃	Материал:	Нейлон
Режим подключения:	Нажмите замок	Контактный материал:	Латунь Позолоченная
Выделить:	M25 waterproof bulkhead connector , 3+9 pin multi pin connector , IP67 waterproof circular connector

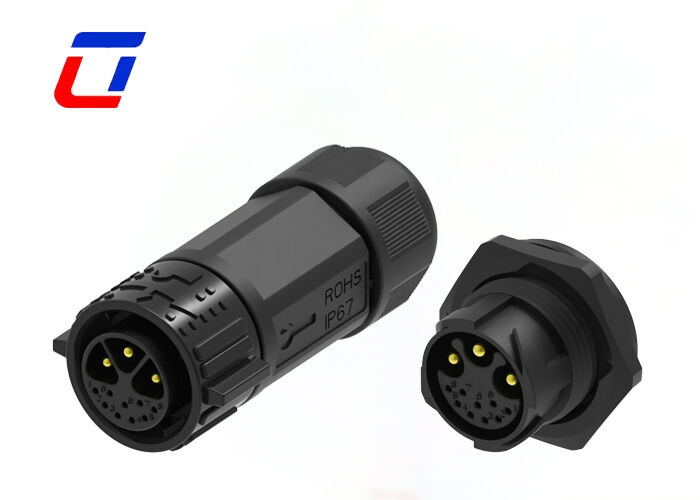

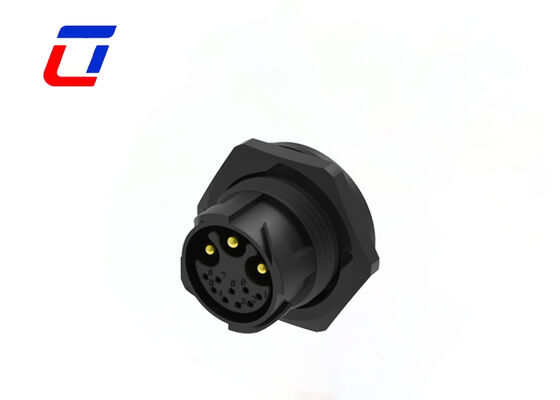

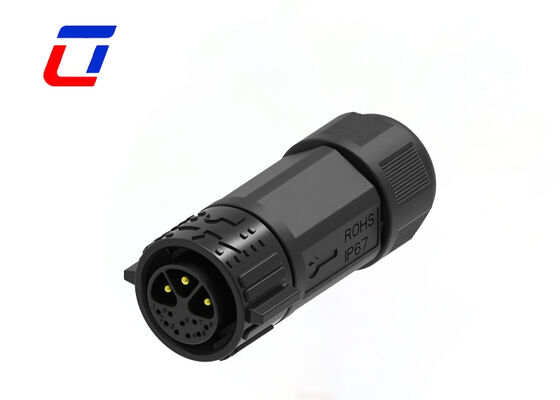

M25 Circular Bulkhead Connectors Multi Pin Connectors Waterproof 3+9 Pin

Multi Pin Connector Types Of 3+9 Pin M25 30A 300V Outdoor Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 30A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Features

3+9 Pin Functional Segmentation for Multi-Equipment Synergy

With three pins dedicated to main power supply and nine pins for multi-channel parallel signal transmission (flexibly assignable to sensors, controllers, status lights, etc.), this connector eliminates the need for the traditional "1 power + 3 signal connectors" setup. It reduces equipment interface count by 75% and eliminates wiring errors entirely, streamlining system integration.

One-Click Quick-Lock & Foolproof Design

The foolproof guide groove prevents pin damage from incorrect insertion, while the elastic buckle achieves instant locking in one second—no tools required. This allows single-person installation even in high-altitude or narrow outdoor spaces, improving construction efficiency and safety.

30A/300V Medium-Power Capacity

Rated 30A current and 300V voltage perfectly align with outdoor medium-power device requirements. Compared to low-current alternatives, it doubles the load-bearing capacity, expanding application versatility.

IP67 Outdoor-Grade Protection

Featuring triple sealing technology and weatherproof housing, it withstands heavy rainfall, sandstorms, high-temperature exposure, and freezing cold. Maintains uninterrupted, fault-free operation in unprotected outdoor settings, meeting long-term outdoor working demands of photovoltaics, security, amusement equipment, and more.

Technical Specifications

Product Type Features	Connector System: Cable-to-Board Sealable: Yes Connector & Contact Terminates To: Wire & Cable Circular Connector Type: Plug, Receptacle Shell Type: Plastic Shell Product Type: Connector Kit
Configuration Features	Number of Positions: 3+9 Number of Signal Positions: 9 Contacts Preloaded: Yes
Electrical Characteristics	Operating Voltage (VAC): 300V max. Operating Voltage (VDC): 300V max.
Body Features	Shell Material: PA66 Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic Hermetically Sealed: Yes Entry Style: Side Environmental Protection Type: Elastomer Sealed, Hermetically Sealed O-Ring Material: Elastomer Sealed, Hermetically Sealed Environmental Protection: Yes
Contact Features	Contact Current Rating (Max): 30A max. Circular Connector Contact Type: Pin-Socket
Mechanical Attachment	Connector Mounting Type: Cable Mount (Free-Hanging) Mating Alignment Type: Keyed Mating Retention: With
Dimensions	Wire Size (AWG): 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating Temperature Range: -40°C to 105°C IP Water Sealing Level: IP67 IP Dust Sealing Level: 6
Industry Standards	UL Flammability Rating: UL 94V-0
