Name: PA66 M25 3+9 Pin Screw Terminal Connector Industrial Power And Signal Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Главная страница Продукция На открытом воздухе водоустойчивый соединитель

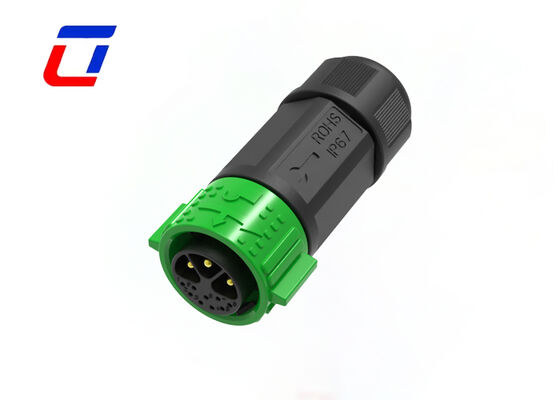

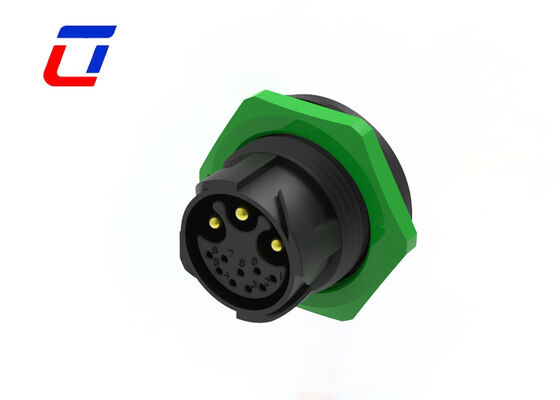

PA66 M25 3+9 Pin Screw Terminal Connector Industrial Power And Signal Connectors

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	Ulinkcon
Сертификация:	CE/Rohs
Номер модели:	M25

Оплата и доставка Условия:

Количество мин заказа:	переговоры
Цена:	Подлежит обсуждению
Упаковывая детали:	Коробка
Время доставки:	5 ~ 8 рабочих дней
Условия оплаты:	Т/Т, Д/А, Д/П, МонейГрам, Л/К
Поставка способности:	100000 пар в месяц

контакт

Подробное описание продукта

Текущий:	15А	Количество контактов:	3+9 ПИН
Рейтинг водонепроницаемости:	IP67	Температурный диапазон:	-40℃~+105℃
Материал:	Нейлон	Рейтинг огнестойкости:	УЛ94-В0
Выделить:	PA66 M25 screw terminal connector , 3+9 pin waterproof connector , industrial power signal connector

Multi Pin Connector Types Of 3+9 Pin M25 300V Outdoor Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin and 2+20Pin
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

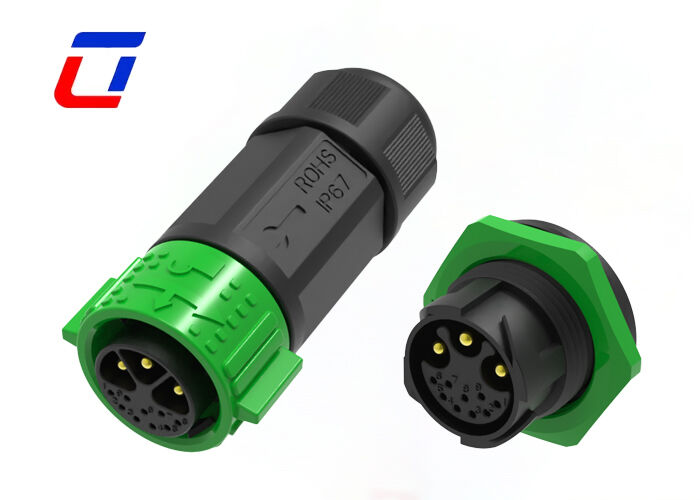

Details of 3+9 Pin Connector Male female

3+9 Pin Dual-Channel Transmission Core Specifications: Adopts a 3+9 Pin (3-pin power + 9-pin signal) separated design. The 9-pin signal channel can meet the needs of simultaneous transmission of multiple groups of signals, and the 3-pin power channel is suitable for the power supply scenario of industrial equipment, avoiding mutual interference between power supply and multiple groups of signals; the interface specification is M25 standard, the plug and socket are accurately matched with small pin positioning error, adapting to the composite connection needs of multiple signals and single power supply in the industrial field.

Industrial-Grade Material Advantages of PA66 Shell: The shell is integrally formed of PA66 engineering plastic, which has excellent high and low temperature resistance, impact resistance, corrosion resistance and flame retardant performance, and can adapt to harsh working environments such as high temperature, heavy oil pollution and strong vibration in industrial workshops; the material itself has excellent insulation performance, which can effectively isolate electromagnetic interference in the industrial environment and provide stable protection for power supply and signal transmission.

Screw Terminal Firm Connection Design: Uses a screw terminal connection method. After the cable is connected, it is compressed and fixed by screws, with extremely small contact resistance and high connection firmness, which can resist vibration and impact during long-term operation of industrial equipment and avoid cable falling off or poor contact; the wiring operation is convenient without special tools, adapting to on-site rapid wiring and later maintenance needs.

High-Stability Transmission and Safety Performance: The conductor is made of high-conductivity copper alloy material, and the surface is anti-oxidation treated, which not only ensures low loss of industrial-grade power transmission but also ensures clear and delay-free transmission of multiple groups of signals; the terminal is equipped with a sealed protection design, which can effectively prevent dust and oil pollution from entering, eliminate potential safety hazards such as short circuits and signal distortion, and meet the safe operation standards of industrial equipment.

Diversified Adaptation Scenarios in Industrial Field: Tailor-made for industrial scenarios, widely used in power supply and simultaneous transmission of multiple groups of signals in scenarios such as industrial control cabinets, automated production line equipment, heavy machinery control units, industrial instruments and meters, and factory power distribution systems; it can adapt to the connection needs of medium and low voltage industrial equipment, providing reliable connection guarantee for the automated and intelligent operation of industrial production.

Product Type Features
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Configuration Features
Number of Positions	3+9
Number of Signal Positions	9
Contacts Preloaded	Yes
Electrical Characteristics
Operating Voltage (VAC)	300V max.
Operating Voltage (VDC)	300V max.
Body Features
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Features
Contact Current Rating (Max) (A) .	15A max.
Circular Connector Contact Type	Pin-Socket
Mechanical Attachment
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Dimensions
Wire Size (AWG)	20AWG,18AWG,16AWG,14AWG,
Usage Conditions
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Industry Standards
UL Flammability Rating	UL 94V-0

Production Dimension

More Technical Details

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:How many materials you can provide?

A2: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

Q3:How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.
