Name: PA66 M25 4 Pin Power Connector OEM Push Pull Cable To Cable Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Главная страница Продукция Водоустойчивый разъем питания

PA66 M25 4 Pin Power Connector OEM Push Pull Cable To Cable Connectors

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	Ulinkcon
Сертификация:	CE/Rohs
Номер модели:	M25

Оплата и доставка Условия:

Количество мин заказа:	Переговоры
Цена:	Подлежит обсуждению
Упаковывая детали:	Высококачественная экспортная коробка
Время доставки:	3 ~ 6 рабочих дней
Условия оплаты:	Т/Т, Д/А, Д/П, МонейГрам, Л/К
Поставка способности:	100000 пар в месяц

контакт

Подробное описание продукта

Количество контактов:	4-контактный	Текущий:	50А
Номинальное напряжение:	500В	Материал:	Нейлон
Уровень защиты:	IP67	Рейтинг огнестойкости:	УЛ94-В0
Выделить:	PA66 M25 waterproof power connector , 4 pin push pull connector , OEM cable to cable connector

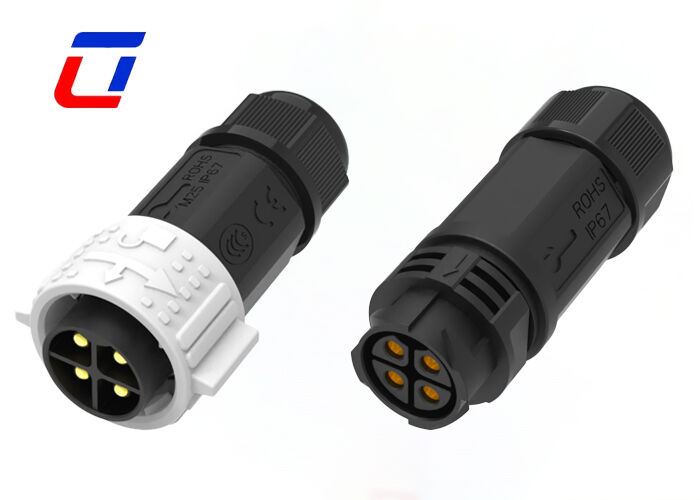

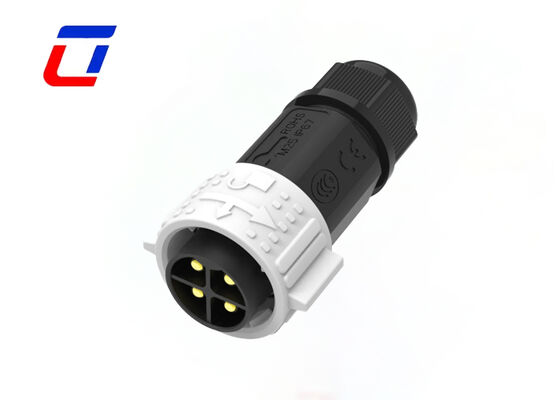

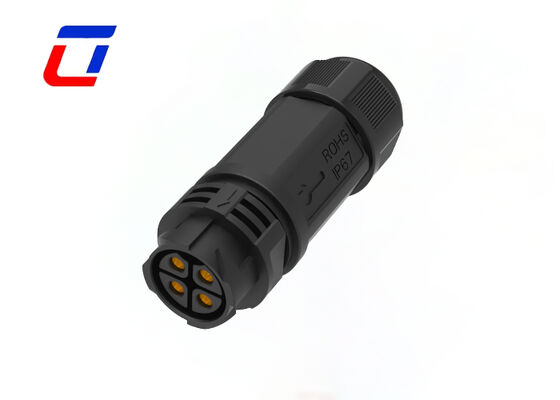

PA66 M25 4 Pin Power Connector

OEM Push Pull Cable To Cable Connectors with IP67 Waterproof Rating

Product Overview

Waterproof Electrical 500V M25 4 Pin Waterproof Push Lock Connectors designed for demanding industrial applications.

Key Features

Push lock quick release system for easy connection
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version with both wire to wire and wire to board options
High current rated waterproof connector suitable for up to 50A continuous operation
Cable assembly service supported with custom options
OEM/ODM customization welcome

Material Construction

High-rigidity PA66 material shell with excellent flame retardancy, impact resistance and weather resistance. Tested to withstand -40℃~105℃ temperature cycles, UV exposure, acid-alkali corrosion, and salt spray corrosion. Provides 50% increased fracture resistance compared to ordinary plastic shells.

OEM Customization

Comprehensive OEM customization services available including pin power distribution, shell color matching, interface specification fine-tuning, and locking structure optimization to meet specific application requirements.

Electrical Specifications

Number of Poles	4Pin waterproof connector
Current Rating	50A maximum
Voltage Rating	600VAC maximum
Durability Voltage	2500VAC @ 60 seconds

Technical Specifications

Contact Resistance	10 mΩ maximum
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Power Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Operation Parameters

Voltage Rating	600VAC maximum
Current Rating	30A maximum
Minimum Wire Size OD	6.5mm ~ 10mm
Maximum Wire Size OD	10.5mm ~ 18mm
Maximum Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.

What payment methods do you accept?

We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, our standard term is 30% down payment + 70% balance before shipment.

Do you accept other payment currencies besides USD?

Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
