Name: M19 16 Pin Outdoor Waterproof Cable Connector IP67 500V Quick Lock Male Female Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: М19
Availability: InStock

Главная страница Продукция водоустойчивый кабельный соединитель

M19 16 Pin Outdoor Waterproof Cable Connector IP67 500V Quick Lock Male Female Connector

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	Ulinkcon
Сертификация:	CE/Rohs/TUV/UL
Номер модели:	М19

Оплата и доставка Условия:

Количество мин заказа:	Переговоры
Цена:	Подлежит обсуждению
Упаковывая детали:	1Пластиковый пакет;2- картон;3. По требованиям клиента
Время доставки:	3 ~ 6 рабочих дней
Условия оплаты:	Т/Т, Д/П, Л/К, Д/А, Вестерн Юнион, МонейГрам
Поставка способности:	100000 пар Монтли

контакт

Подробное описание продукта

Текущий рейтинг:	5А	ПРИКОЛОТЬ:	16-контактный
Материал:	Нейлон	Рабочая температура:	-40℃-+105℃
Тип:	провод для того чтобы связать проволокой соединитель	Рейтинг огнестойкости:	УЛ94-В0
Выделить:	M19 waterproof cable connector IP67 , 16 pin quick lock connector , outdoor waterproof male female connector

M19 16 Pin Outdoor Waterproof Cable Connector IP67 500V Quick Lock Male Female Connector

Product Overview

M19 IP67 Cable Connectors, 500V Male to Female Industrial Connector with quick lock connection for efficient installation and disassembly.

Key Features

Excellent waterproof and dustproof performance with IP67 protection level
Quick lock connection method for efficient installation and disassembly
Wide adaptability to outdoor application scenarios
Push lock quick release system
Multiple pin configurations available: 2Pin-18Pin for power and signal applications
Field assembly version with wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters

Number of Poles	16Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

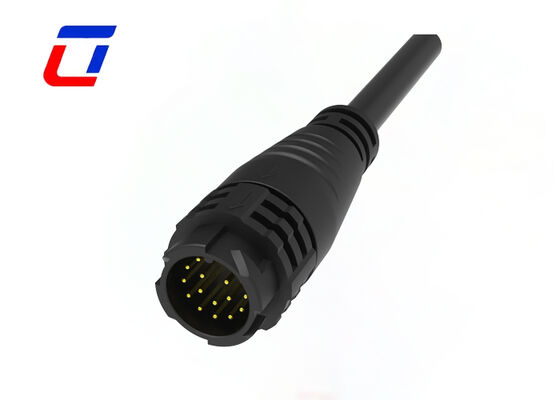

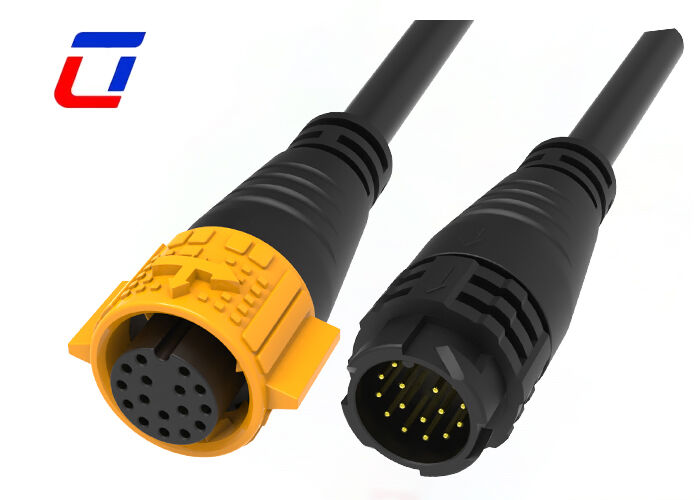

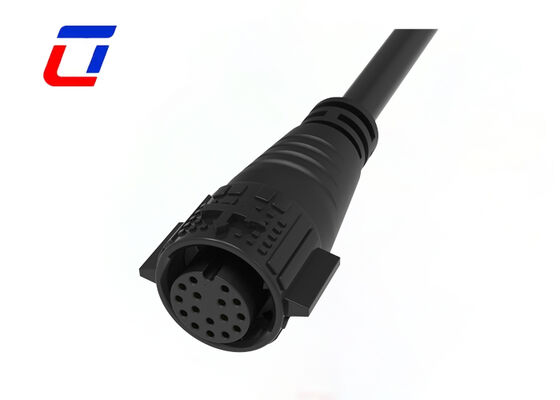

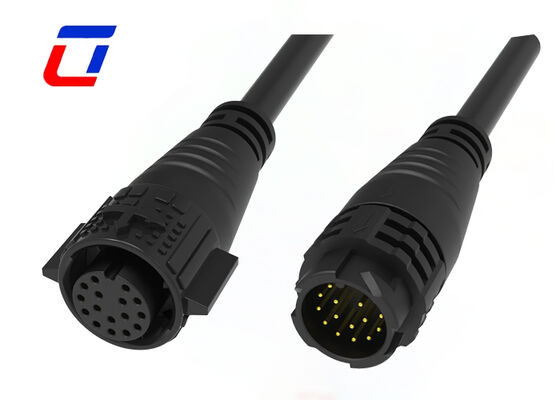

Product Images
