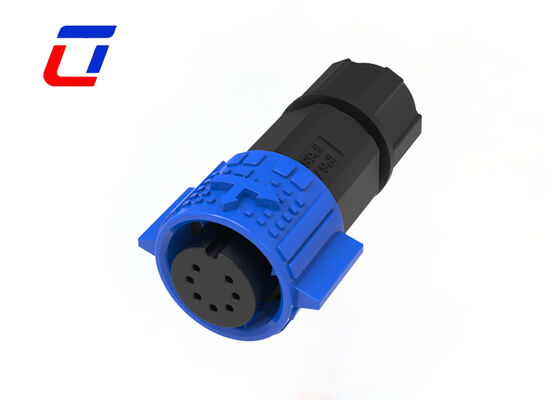

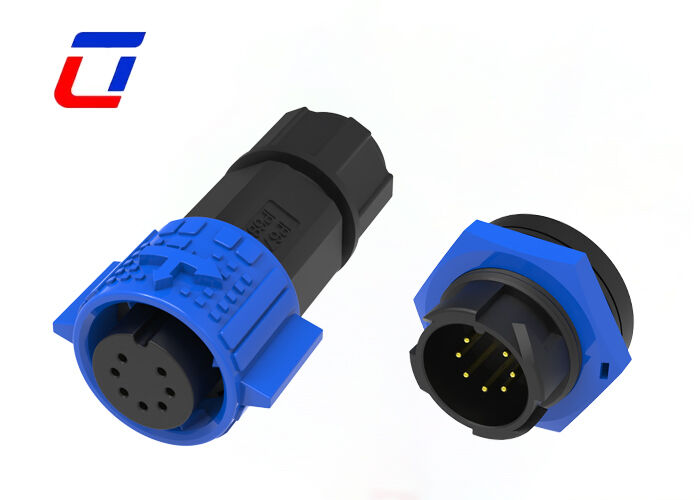

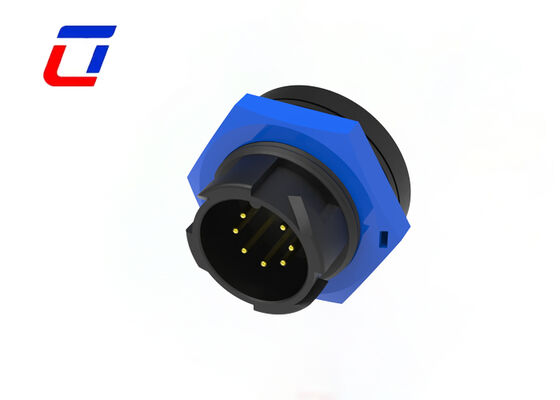

7 Pin Male Female Connector M19 Wire To Board Outdoor Connectors

7 Pin Male Female Connector M19 Wire To Board Outdoor Connectors

Quick Description

Our 7 Pin M19 Wire-to-Board Male-Female Connector is engineered for rugged outdoor applications, delivering reliable connectivity that stands up to harsh environmental conditions. Designed with a precision M19 housing, this connector ensures secure wire-to-board integration, while the 7-pin configuration enables stable transmission of power and signals for a wide range of industrial and outdoor devices.

• Superior Waterproof Performance: Crafted with IP67rated sealing (customizable per requirements), it effectively blocks moisture, dust, and debris, making it ideal for outdoor installations, marine equipment, and industrial machinery exposed to rain, humidity, or extreme temperatures.
• Secure & Durable Connection: The male-female mating design features a tight, anti-loose lock that prevents disconnection due to vibration or external impact, ensuring long-term operational stability. The high-quality plastic housing and corrosion-resistant metal contacts enhance durability and extend service life.
• Efficient 7-Pin Transmission: With 7 dedicated pins, the connector supports simultaneous power supply and multi-signal transmission, meeting the needs of complex devices such as outdoor sensors, LED lighting systems, solar panels, and agricultural machinery.
• Easy Installation & Compatibility: The wire-to-board design simplifies wiring and assembly, while the standard M19 size ensures compatibility with most industry-standard interfaces, reducing installation time and maintenance costs.

Main Features

• Push lock quick release system
• Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
• 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
• 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
• Field assembly version:both wire to wire and wire to board options
• Current rated 20A for long time working
• Cable assembly service supported, welcome to custom
• OEM/ODM welcome

Application industries

• Growth Lights
• Communications Application
• product coding machines
• inventory product coding
• inkjet systems
• Solar System
• industrial inkjet equipment
• Electric power equipment
• Laboratory forensic&pathology equipment
• Communications equipment
• Heavy machinery

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
